HK-MG Type Cable Transit (A0-A60 Class)

Composition

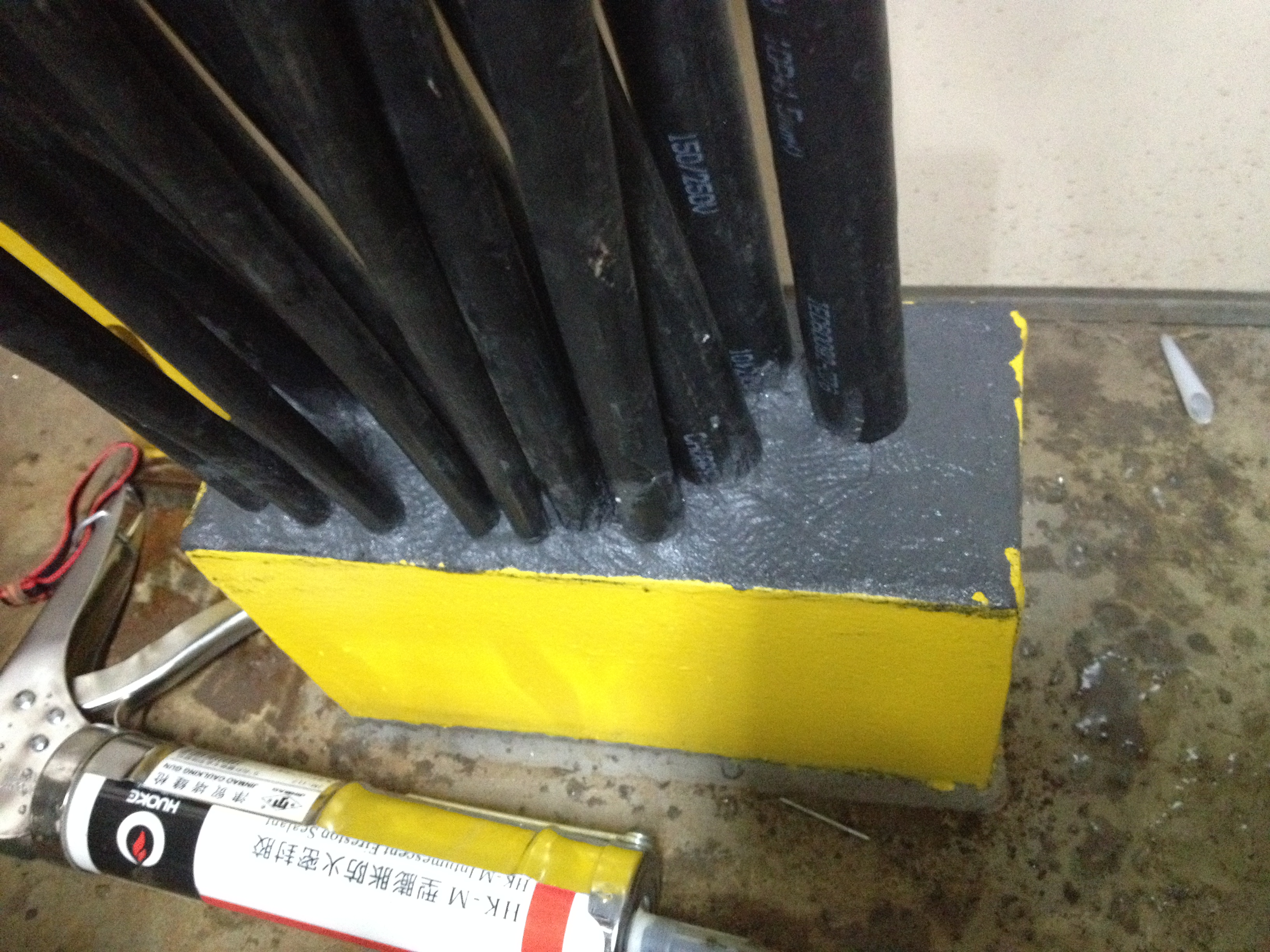

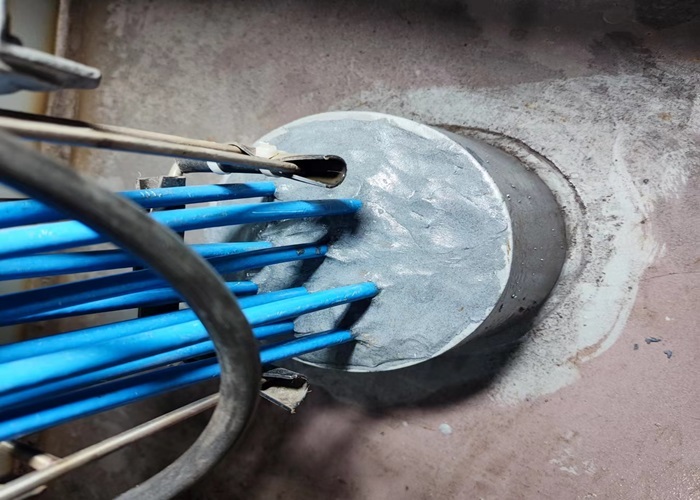

  • HK-M Type Intumescent Firestop Sealant: Seal the two ends of cable coaming, with a minimum thickness of 20mm.

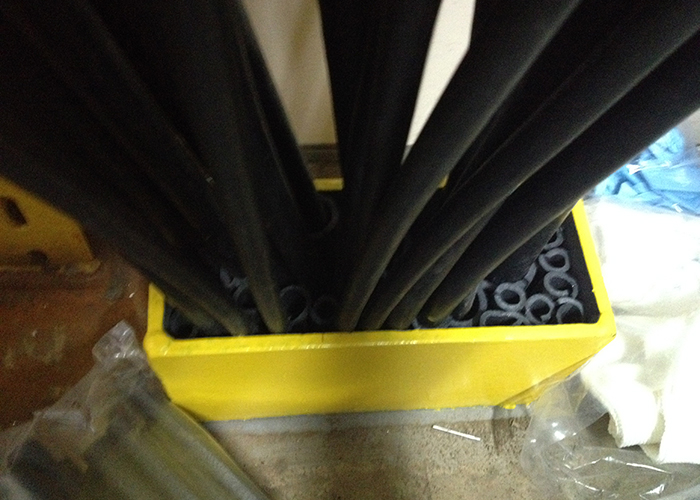

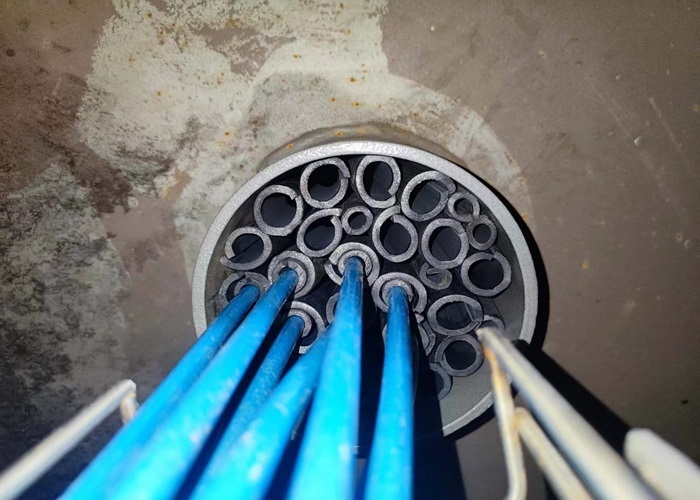

  • HK-G Type Intumescent Firestop Sleeve: Wrap cables and fill the gap in remaining spaces, with a minimum length of 110mm.

Technical Data

  • Fire Rating: A0-A60

  • Water Tightness: 0.35Mpa

  • Air Tightness: 0.20Mpa

  • Maximum Dimension of Cable Coaming: 800x400x150mm

  • Maximum Cable OD of Multiple Cables: Φ114mm, with maximum cable occupancy rate of 40%

  • Maximum Cable OD of Single Cable: Φ170mm, with maximum cable occupancy rate of 44.4%

Approved by

CCS, ABS, DNV, BV, LR, NK, RS, and MED



Installation Guidance

HK-MG Type Cable Transit Installation Guidance (youtube.com)
