HK-Antifire-T Type Metallic Pipe Penetration for Aluminum Bulkhead and Deck (A60 Class)

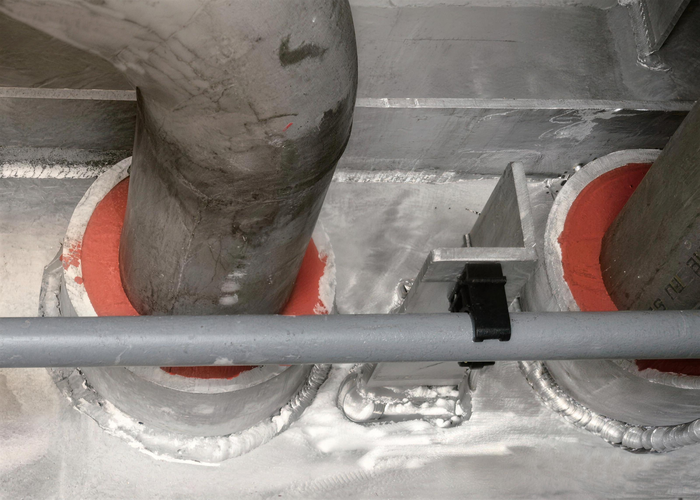

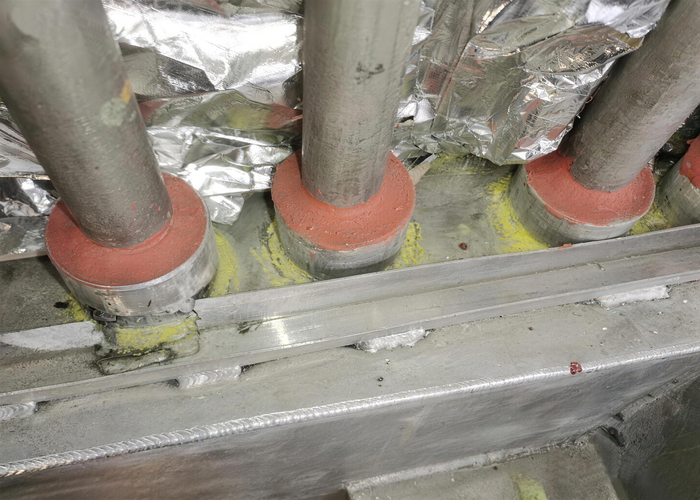

Suitable for the fireproof sealing of metallic pipe penetrating aluminum bulkhead and deck.


Composition

  • Antifire Firestop Sealant: Seal the two ends of aluminum sleeve, with a minimum thickness of 15mm.

  • HK-T Type Intumescent Firestop Sleeve: Fill the gap between metallic pipe and aluminum sleeve, with a minimum length of 150mm.

Technical Data

  • Fire Rating: A60

  • Water Tightness: 0.30Mpa

  • Air Tightness: 0.20Mpa

  • Approved OD of Metallic Pipe: Φ6-Φ141.3mm

Approved by

CCS, BV, RS, and MED


Recommended products
Recommended products

Antifire Firestop Sealant

HK-T Type Intumescent Firestop Sleeve
