Home>Solutions>JZ-UDMT Type Ultralight Cable Firestop Sealing Compound (A0-A60 Class)

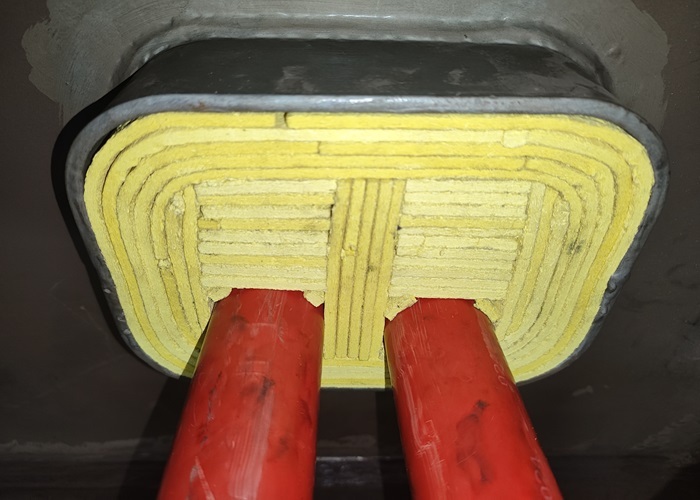

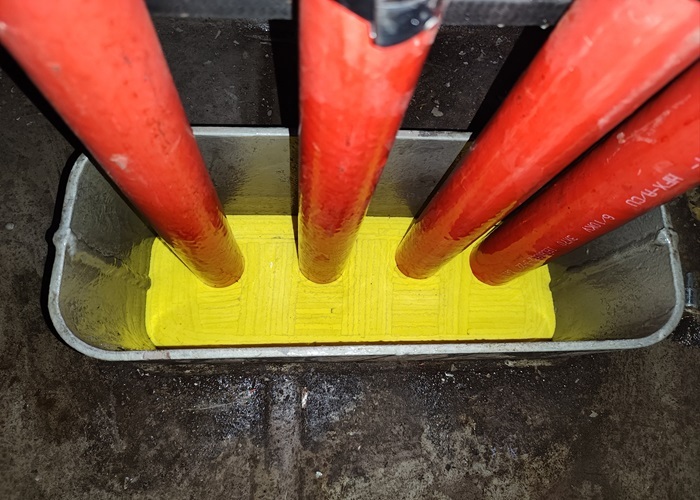

JZ-UDMT Type Ultralight Cable Firestop Sealing Compound (A0-A60 Class)

Composition

  • JZ-UDMT Firestop Sealing Stuff: Can be mixed with tap water, no special curing agent required

  • JZ-PD20 Expand Retaining Compound

Technical Data

  • Fire Rating: A0-A60

  • Water Tightness: 0.38Mpa

  • Air Tightness: 0.25Mpa

  • Maximum Dimension of Steel Sleeve: 1008x358x150mm

  • Maximum Cable OD: Φ110mm, with maximum cable occupancy of 42.4%

Approved by

CCS, ABS, DNV, BV, LR, NK, KR, and RS



Installation Guidance

JZ-UDMT Type Cable Transit Installation Guidance (youtube.com)

Recommended products
Recommended products

JZ-PD20 Expand Retaining Compound

JZ-UDMT Firestop Sealing Stuff
