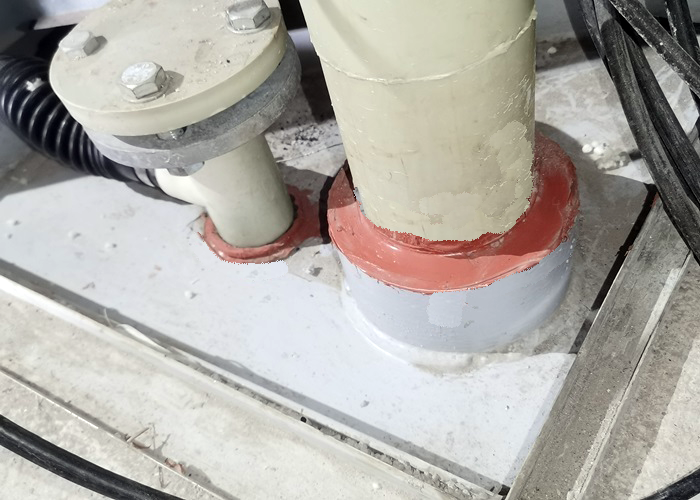

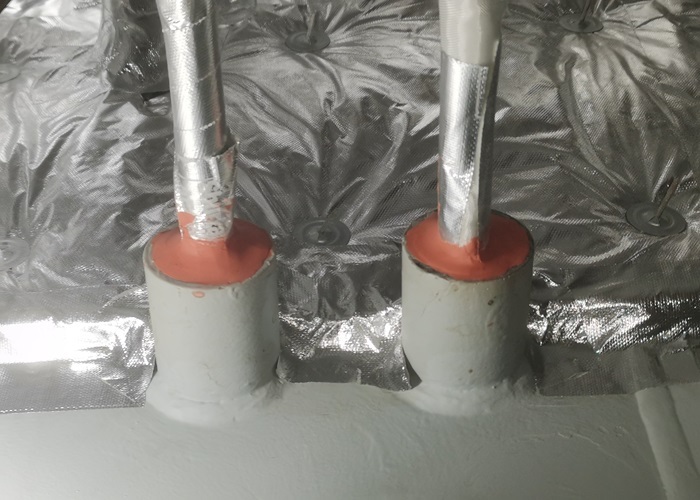

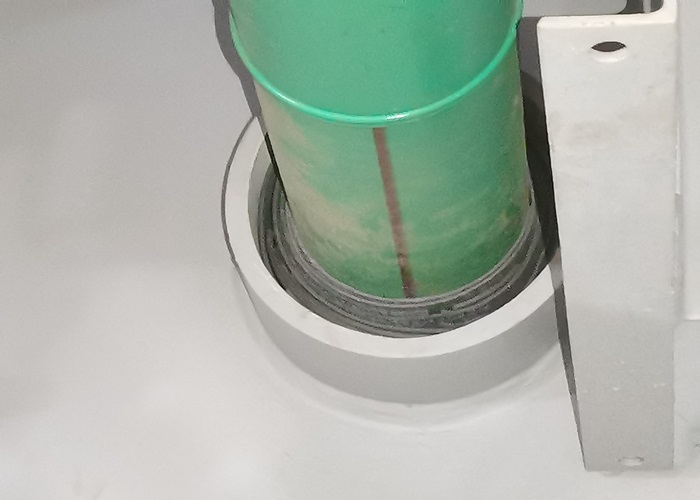

Suitable for the fireproof sealing of plastic pipe penetrating aluminum bulkhead and deck.

Composition

• Antifire Firestop Sealant: Seal the two ends of aluminum sleeve, with a minimum thickness of 15mm.

• HK-S Type Intumescent Firestop Belt: Wrap around plastic pipe, with a minimum length of 150mm.

Technical Data

• Fire Rating: A60

• Water Tightness: 0.30Mpa

• Air Tightness: 0.20Mpa

• Approved OD of Plastic Pipe: Φ20-Φ110mm

Approved by

CCS, BV, RS, and MED
