Home>Solutions>HK-Antifire-T Type Cable Transit In Aluminum Deck and Bulkhead（A60 Class）

HK-Antifire-T Type Cable Transit In Aluminum Deck and Bulkhead（A60 Class）

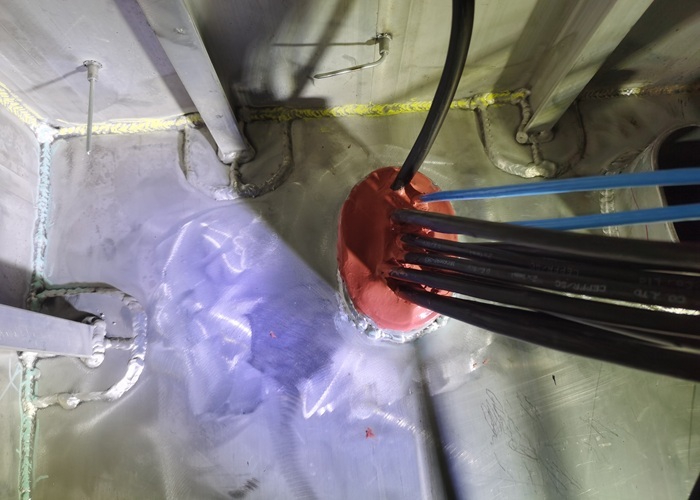

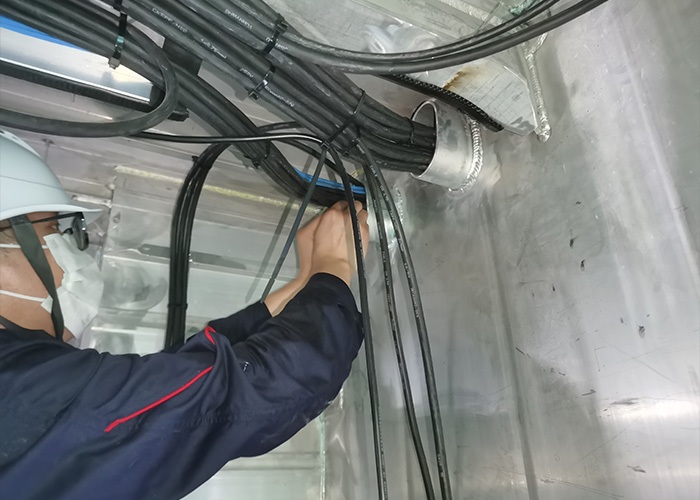

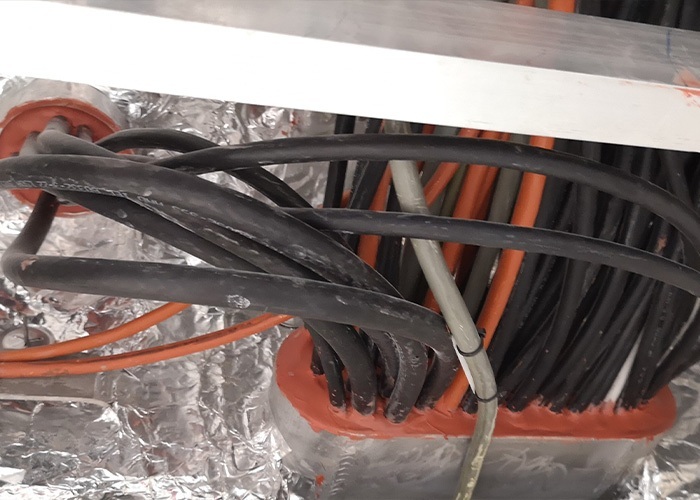

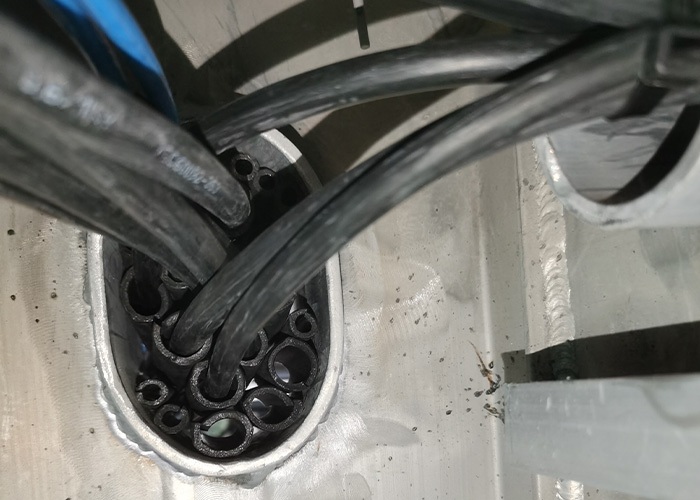

Suitable for the fireproof sealing of cables penetrating aluminum bulkhead and deck.


Composition

  • Antifire Firestop Sealant: Seal the two ends of aluminum sleeve, with a minimum thickness of 15mm.

  • HK-T Type Intumescent Firestop Sleeve: Wrap cables and fill the gap between cable and aluminum sleeve, with a minimum length of 150mm.

Technical Data

  • Fire Rating: A60

  • Water Tightness: 0.30Mpa

  • Air Tightness: 0.20Mpa

  • Maximum Dimension of Aluminum Sleeve: 706x306x180mm

Approved by

CCS, BV, RS, and MED


Recommended products
Recommended products

HK-S Type Intumescent Firestop Belt

Antifire Firestop Sealant

HK-T Type Intumescent Firestop Sleeve
