HK-MG Type Multicore Pipe Penetration(A0-A60 Class)

Composition

  • HK-M Type Intumescent Firestop Sealant: Seal the two ends of steel sleeve, with a minimum thickness of 20mm.

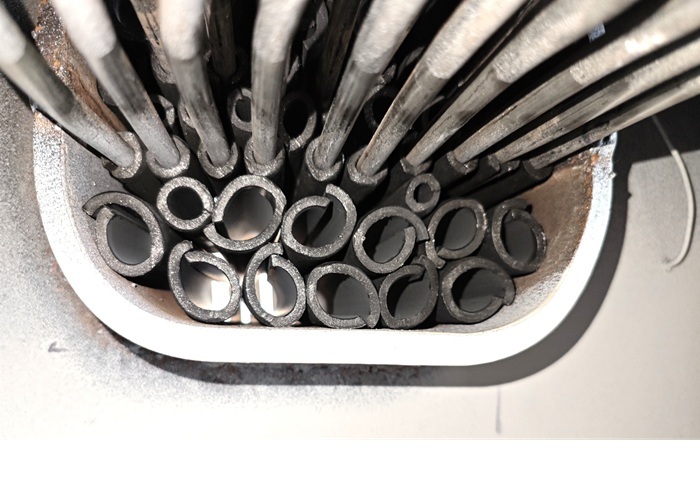

  • HK-G Type Intumescent Firestop Sleeve: Wrap around multicore pipe and fill the gap between pipe and steel sleeve, with a minimum thickness of 110mm.

Technical Data

  • Fire Rating: A0-A60

  • Water Tightness: 0.35Mpa

  • Air Tightness: 0.20Mpa

  • Maximum Dimension of Steel Sleeve: 806x306x150mm

  • Approved OD of Multicore and SS Pipe: Φ6-Φ45mm

Approved by

CCS, ABS, DNV, BV, LR, NK, RS, and MED
